| Main Spec |

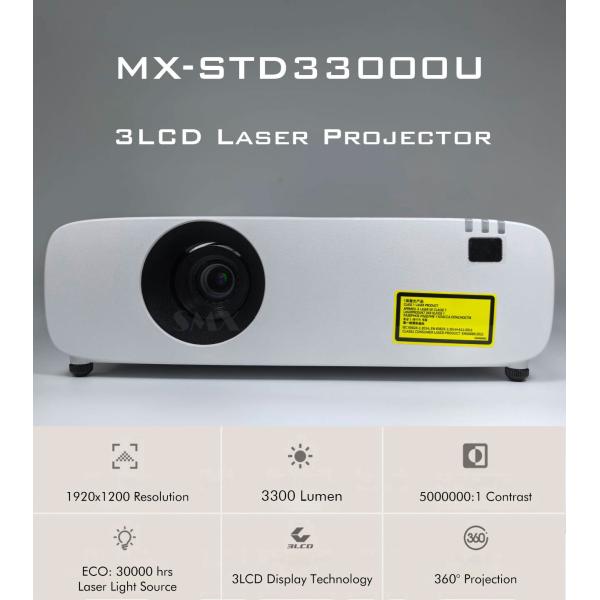

| | Model No. | MX-STD3300U |
| Brightness(Lumen) | 3300 |
| Resolution | WUXGA |
| Overall Spec |
| Panel | Display Panel | 3x0.64” with MLA |
| Display Technology | Liquid Crystal Display |
| Native Resolution | WUXGA (1920 x 1200) |
Light source
Life time | FullNormal
/Normal mode | 20000hrs |
| ECO1 mode | 30000hrs |
| Projection Lens | Lens Vendor | ZAMX Lens |
| F | 1.61~1.76 |
| f | 19.1~23mm |
| Zoom/Focus | Manual |
| Throw Ratio | 1.37~1.65:1 |
| Zoom Ratio | 1.2x optics |
| Screen size | 30-300 inch |
| CR | Dynamic Contrast Ratio | 5000,000:1 |
| Noise | Noise(dB) | 37dB(Normal)
30dB(ECO1)
28dB(ECO2) |
| Uniformity | Uniformity | 80% |
| AR | Aspect Ratio | Native:16:10
Compatible: 4:3/16:9 |
| Terminal(I/O port) |
| Input | VGA | *1 |
| HDMI | *2 |
| Video | *1 |
Audio in
(mini jack,3.5mm) | *1 |
Audio in
(RCA×2) <Audio L/R> | *1 |
| USB-A | *1 |
| USB-B | *1(Display) |
| RJ45 | *1(Display) |
| Output | VGA | *1 |
Audio out
(mini-jack,3.5mm) | *1 |
| Control | RS232 | *1 |
| RJ45 | *1 (Control) |
| General Spec |
| Audio | Speaker | 16W*1 |
| Dust filter | W/Filter |
| Filter Life Time | 7000h |
| Power Consumption | Power Requirements | 100~240V@ 50/60Hz |
Power Consumption
(Normal) (Max) | 195 |
Power Consumption
(ECO1) (Max) | 135 |
Power Consumption
(ECO2) (Max) | 125 |
| ECO Standby Mode Power Consumption | <0.5W |
| Temp.&Humidity | Operating Temp. | 0 to 40 °.C |
| Operating Thumidity. | 20-80% |
| Storage Temp. | -10 to 50°C |
| Storage Humidity. | 10-85% |
| High altitude | 0-3000m |
| Other Functions |

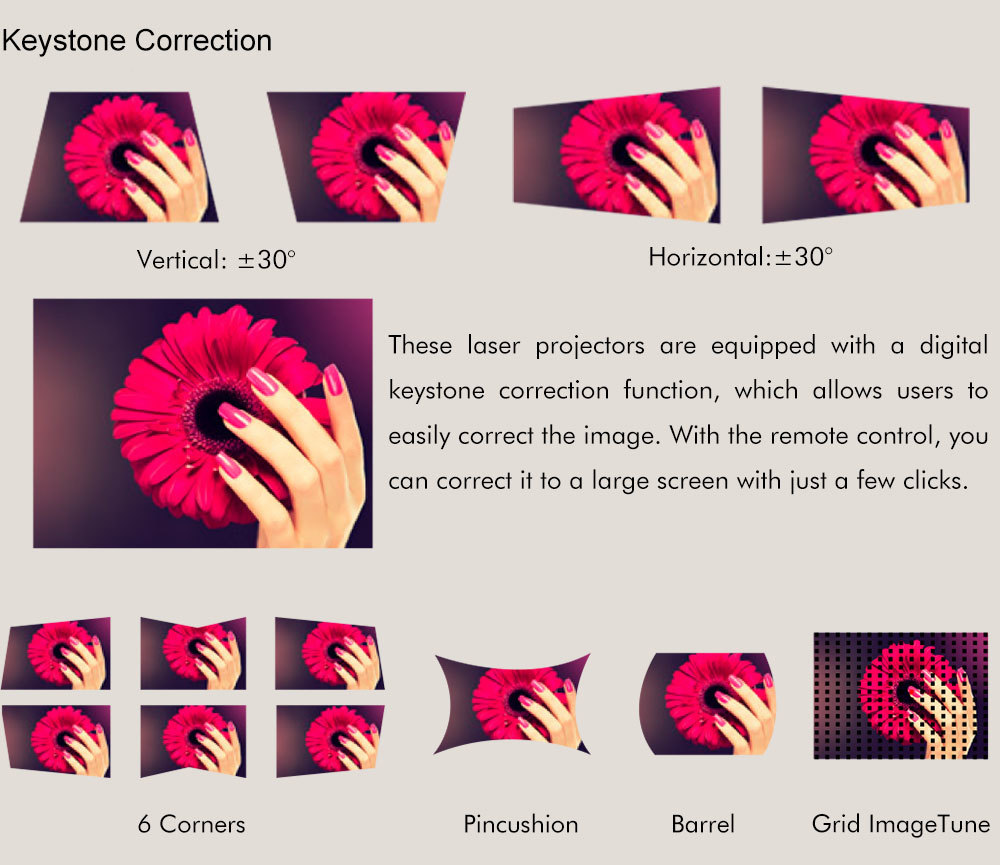

| Keystone | Keystone Correction
(Lens@center) | V: ±30° H:±30°
Pincushion
Barrel Correction
4 corner
6 Corner Geometry Correction
Grid image tune |
| OSD | Languages | 26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch, Portuguese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazakh, Vietnamese, Thai, Farsi |
| LAN Control | LAN Control-RoomView (Crestron) | Yes |
| LAN Control-- AMX Discovery | Yes |
| LAN Control-- PJ Link | Yes |
| Scanning Frequency | H-Synch Range | 15~100KHz |
| V-Synch Range | 24~85Hz |
| Display Resolution | Computer Signal Input | VGA, SVGA, XGA, SXGA,
WXGA, UXGA,WUXGA,4K@30Hz |
| Video Signal Input | 480i, 480p, 576i, 576p, 720p,1080i and 1080p |
| SW setting | Auto Setup | INPUT SEARCH, AUTO PC, Auto Keystone |
| Blank | Yes |
| Suspend | Yes(5miniutes no singnal as default) |
| Picture mode | Dynamic, Standard, Cinema, Colorboard, Blackboard(Green) |
| Cooling time | 5s |
| Closed caption | Yes |
| Auto Ceiling | Yes |
| D-Zoom | 1~19 |
| Others | 360° projection | Yes |
| Dimension&Weight |
| | Product Size
(WxDxH mm) | 390*294*128 |
| Net. Weight (KG) | 5Kg |
Packaging
(WxDxH mm) | 492*443*239 |
| Gross. Weight (KG) | ~6.5Kg |
| Accessory |
| | Manual Languages | Chinese, English |
| Standard Accessories | Power cord, Remote, HDMI cable |
